ValueLam 4500™
Laminating/Mounting Machine

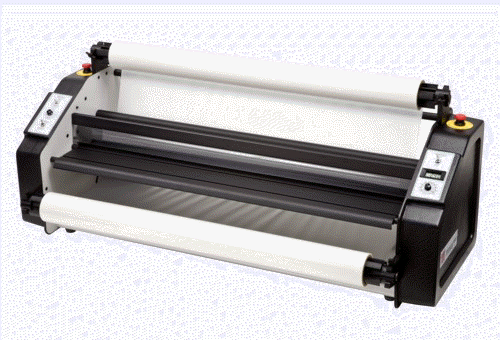

The ValueLam 4500 Laminating/Mounting machine is the ideal value-priced laminator for large-format imaging services. The ValueLam 4500 is capable of mounting, laminating and encapsulating output from 36”, 42” and 44” inkjet printers. Affordable and functional, the ValueLam 4500 is loaded with features important in giving you the highest level of results for each and every project.
Features
The ValueLam 4500 Laminating/Mounting machine offers carefully designed features intended to quickly get you up and profitably running without the added expense of more advanced machines. The easy-to-use design makes the operator’s job simpler with features such as:
Top and bottom heat
Electronic heat control with LCD readout
Variable speed
Forward/reverse switch
3” (7.62cm) diameter silicone heated rollers
Clear polycarbonate safety shield
Emergency stops on both sides
Mounting capability up to 1/4” (6.4mm)
Plastic Width:
45” (114.3cm)
Speed:
0-5’ per/minute (2.92cm/sec)
Laminating Rollers:
3” (7.62cm) diameter - heated
Film Supply Core Size:
3” (7.62cm)
Maximum Film Roll Diameter:
8.5” (21.59cm)
Machine Dimensions:
57”L x 27”H x 24.5”D (145 x 69 x 62cm)
Shipping Dimensions:
67”L x 40”H x 38”D (170 x 102 x 97cm)
Net Weight:
183 lbs. (83kg)
Shipping Weight:
323 lbs. (147kg)
Heater Wattage:
2400 watts
Power Requirements:
20 amps, 120 VAC, 60Hz
ValueLam 4500 available in 220V.
Our Introductory Price is $5,245.00
