THE NEWLY-REDESIGNED

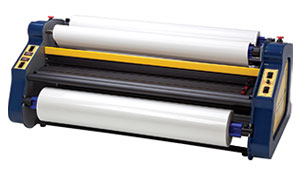

VALUELAM 4500HC LAMINATING/MOUNTING MACHINE IS THE IDEAL
VALUE-PRICED LAMINATOR FOR LARGE-FORMAT IMAGING OUTPUT UP TO 44”
WIDE. THE VALUELAM 4500HC FEATURES HOT AND COLD LAMINATION WITH
DUAL HEATED ROLLERS, RELEASE LINER TAKE UP, 1/2” MOUNTING
CAPABILITY AND EXTRA TAKE UP MANDREL FOR AUTOMATIC ROLL UP OF
LAMINATED PRINTS.
AFFORDABLE AND
FUNCTIONAL, THE VALUELAM 4500HC IS CAPABLE OF RUNNING ALL TYPES
OF COLD AND HEAT-SET PRESSURE SENSITIVE LAMINATES AND ADHESIVES
AND ENCAPSULATING WITH TRUE THERMAL LAMINATES. THE VALUELAM
4500HC FEATURES A ”HEAT ASSIST” MODE (TOP ROLLER HEAT ONLY) THAT
DELIVERS THE PERFECT HEAT LEVEL TO INCREASE INITIAL ADHESION AND
CLARITY OF SLOW CURING PRESSURE SENSITIVE FILMS LESSENING THE
TIME TO RECEIVE FINISHED OUTPUT SUITABLE FOR DISPLAY.
FEATURES:
-
INDEPENDENTLY
CONTROLLED TOP AND BOTTOM HEAT
-
ELECTRONIC HEAT
CONTROL WITH LED READOUT
-
VARIABLE SPEED
-
FORWARD/REVERSE
SWITCH
-
3” (7.62CM)
DIAMETER SILICONE HEATED ROLLERS
-
CLEAR
POLYCARBONATE SAFETY SHIELD
-
EMERGENCY STOPS ON
BOTH SIDES
-
MOUNTING
CAPABILITY UP TO 1/2” (12.7MM)
-
SHROUDED FOOT
SWITCH
-
DISABLE FOR FOOT
SWITCH
-
TAKE UP MANDREL
FOR RELEASE LINERS ON P/S FILM
-
ADDITIONAL TAKE UP
MANDREL FOR ROLLING UP LAMINATED PRINTS
-
MODEL: VALUELAM
4500HC™
|
Plastic
Width Capacity |
45”
(114.3cm) |
|
Speed |
0-10’
per/minute (3m/min.) |
|
Laminating Rollers |
3”
(7.62cm) diameter - heated |
|
Film
Supply Core Size |
3”
(7.62cm) |
|
Maximum
Film Roll Diameter |
6”
(14cm) |
|
Machine
Dimensions |
56”L x
21”H x 30”D (142 x 53 x 76cm) |
|
Shipping
Dimensions |
67”L x
40”H x 38”D (170 x 102 x 97cm) |
|
Net
Weight |
212 lbs.
(95kg.) |
|
Shipping
Weight |
370 lbs.
(170kg.) |
|
Heater
Wattage |
2160
watts |
|
Power
Requirements |
20 amps,
120 VAC, 60Hz |
|
ValueLam
4500HC is available in 220 volt |
|
OUR INTRODUCTORY PRICE IS $5,315.00
